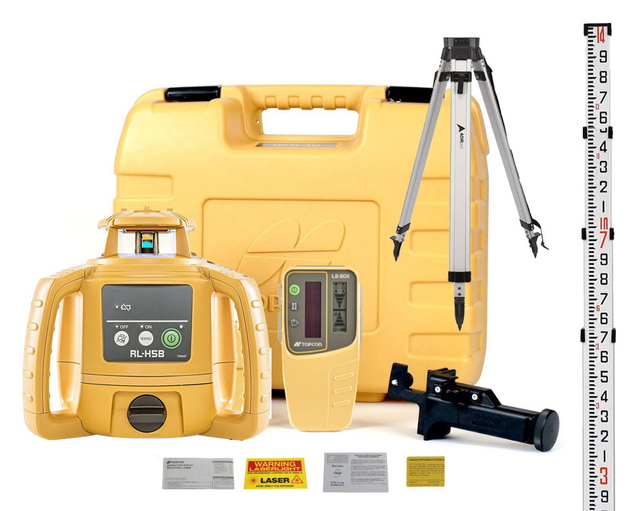

Topcon RL-H5B Rotary Laser w/ LS-80X Receiver, Tripod & Grade Rod 1021200-73

Topcon RL-H5A Horizontal Self-Leveling Rotary Laser

The Topcon RL-H5A Horizontal Self-Leveling Rotary Laser is a multi-purpose laser ideal for grading, excavating, site preparation, concrete works, and other general construction projects. When used with a receiver, it offers a long operating range up to 2,600 feet in diameter. This laser level also offers an accuracy of up to 1/16" at 100 feet and is self-leveling within 5 degrees.For added precision and accuracy, the RL-H5A features a manual single-axis leveling mode and rotates 600 times per minute. This horizontal rotating laser is simple to use, intuitive, and re-levels itself immediately if the device is disturbed on the job.With an IP66 rating, the Topcon RL-H5A is protected from dust and low-pressure water jets. This rotary laser uses either a dry cell or a rechargeable battery that can power the device up to 100 hours, making it the great companion for a long day at work.____Configuration OptionsThe Topcon RL-H5A has an optional LS-80X laser receiver that features dual LCD and two on-grade precision settings. It also has a two-inch beam detection width and nine-channel grade indicators with high/low out-of-range alert. Another optional laser receiver is the Topcon LS-100D which has a digital readout and five on-grade precision settings. This dual LCD display laser detector comes with an extra-wide beam capture sensor that eliminates interference from strobe light exposures. Please select your preference from the menu above. 1021200-15: With LS-80X Receiver, Receiver Mounting Bracket, and BT-79Q rechargeable battery 1021200-06: With LS-80X Receiver, Receiver Mounting Bracket, Charger, and BT-79Q rechargeable battery 1021200-08: With LS-100D Receiver, Receiver Mounting Bracket, Charger, and BT-79Q rechargeable battery Model # RL-H4C RL-H5A RL-H5B Range (Diameter) Up to 2,624 ft Up to 2,624 ft Up to 1,312 ft Accuracy 1/16" at 100 ft 1/16" at 100 ft 1/8" at 100 ft Self Leveling 5 5 5 Slope Manual 1 Axis Manual 1 Axis No Receiver LS-80X/LS-100D LS-80X/LS-100D LS-80X Run Charge Yes No No Rechargeable Battery Life 60 hrs 60 hrs 60 hrs Dry Cell Battery Life 100 hrs 100 hrs 100 hrs Rotation Speed 600 rpm 600 rpm 600 rpm Source LD 635nm Class 2 (EU)/3R LD 635nm Class 2 (EU)/3R LD 635nm Class 2 Protective Glass Yes Yes Yes Remote Control No No No Dimensions (mm) 177 L x 196 W x 217 H 172 L x 211 W x 205 H 172 L x 211 W x 205 H Weight 5.29 lbs 5.07 lbs 5.07 lbs Proof Rating IP66 IP66 IP66 Warranty 5 years 5 years 5 years Scroll back to Top
