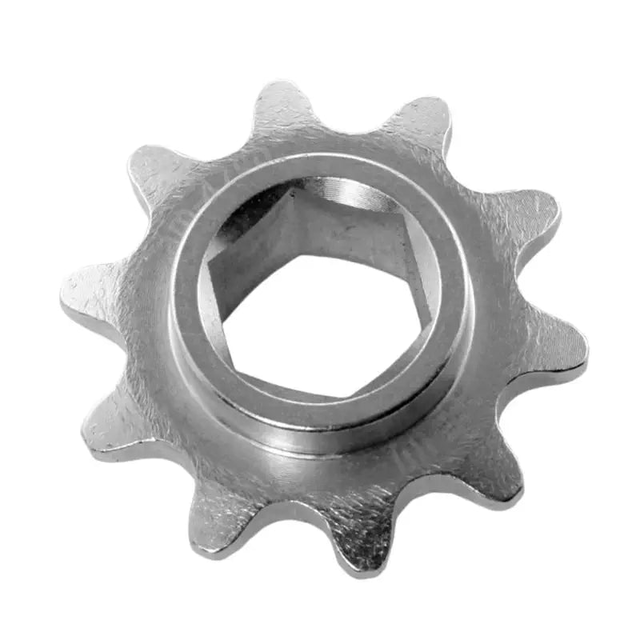

AndyMark 35 Series Symmetrical Hub Sprocket 10 Teeth

Name: AndyMark 35 Series Symmetrical Hub Sprocket 10 Teeth
Brand: RobotShop
Price: 12.12 USD
Availability: InStock

USD 12.12

Description

Description AndyMark 35 Series Symmetrical Hub Sprocket 10 Teeth Designed for roller chains Constructed from durable steel Fits 1/2 inch hex shaft Features symmetrical design Ensures smooth operation The AndyMark 35 Series Symmetrical Hub Sprocket 10 Teeth is designed for seamless integration with roller chains, facilitating efficient rotational motion. Constructed from durable steel, this sprocket is compatible with a 1/2 inch hex shaft, ensuring reliable performance. Its symmetrical design allows for versatile installation, eliminating concerns about incorrect orientation. The hub is engineered to engage only with the inner race of a bearing, promoting smooth operation without frictional interference. Note: Tooth alignment to the bore is not controlled on these sprockets. View more What's Included 1x AndyMark 35 Series Symmetrical Hub Sprocket 10 Teeth Dimensions Pitch Diameter: 1.214 inches Outside Diameter: 1.394 inches Links ZIP File AndyMark 35 Series Symmetrical Hub Sprocket 10 Teeth - 10T Sprocket STEP Specifications Chain Series: 35 Material: Steel Thickness: 0.500 inches Bore: 1/2 inch Hex
