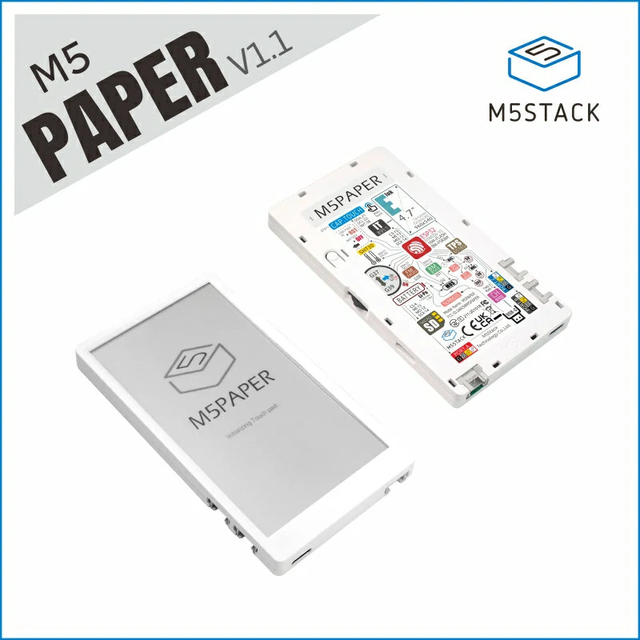

M5Paper ESP32 Development Kit V1.1 (960X540, 4.7" eInk display, 235 ppi)

USD 85.00

Description

PRODUCT DETAILS Description M5Paper v1.1 is M5Stacks latest core device with a touch enabled E-ink display. Powered by the ESP32-D0WDQ6-V3 this is our first device to integrate a super sized 540*960 @4.7" E-ink display,which supports 16 gray scale levels. The display is a GT911 capacitive touch screen,which supports two point touch and a variety of gesture controls . Compared to a regular LCD,E-ink displays are easier on the eyes, which makes them a great choice for reading or viewing for longer periods. Other benefits are the low power consumption and the ability to retain the image even if power to the display is terminated. Integrated in the CoreInk are an multi-function button for operation, SHT30 temperature and moisture sensor, physical buttons and an TF-card(microSD) port for data storage. Additionally the FM24C02 internal eeprom chip provided 2K-bit(256x8)-EEPROM can be used to store vital data even when the device is off. A 1150mAh lithium polymer battery keeps the device going for long periods and battery life can be further preserved by using the RTC(BM8563)to set the device into deep sleep and wake it up again when needed。Three HY2.0-4P expansion ports are included which allow for building complex projects using the existing sensors in the M5Stack ecosystem. M5Paper v1.1 adopts flexible e-Ink screen panel, which is the same model as that of M5Paper v1.0 hard e-Ink screen panel. All features and specs are the same for both models. We are using CP2104 and CH9102 as the USB serial chip in alternative. Please install the relevant USB driver according to your device. Warning: 1. Do not expose to ultraviolet rays for a long time, otherwise it may cause irreversible damage to the ink screen. 2. The low-power power management solution adopted by M5Paper is different from CORE and StickC devices. When using it, the PWR button is used as the power-on button (long press for 2s). If you need to shut down the device, you need to use the software API or It is realized by pressing the reset button on the back. When using USB power supply, it cannot be shut down. 3. During use, if the program cannot be downloaded normally (the prompt is overtime or Failed to write to target RAM), you can try to reinstall the device driver. For driver download, please see the content at the bottom of the document. Product Features ESP32 Standard wireless functions Wi-Fi Internal 16M Flash Low Power Display Multi-Point touch screen 180 degree viewing angle Built-in Magnet Internal 1150mAh Battery Expandable - HY2.0-4P 3 x external expansion ports Include 1x M5Paper v1.1 Applications IoT Terminal E-Book Industrial Control Panel Smart Home Panel Version distinction M5Paper M5Paper v1.1 Hard display panel Flexible display panel Specification Resources Parameter ESP32-D0WDQ6-V3 240MHz dual core, 600 DMIPS, 520KB SRAM, Wi-Fi Flash 16MB PSRAM 8MB Input Voltage 5V @ 500mA Ports TypeC*1, HY2.0-4P*3 , TF-card(microSD) slot E-Ink Display Model Number:EPD_ED047TC1 | 540*960@4.7" | Gray scale : 16 Levels | Display area : 58.32*103.68mm | Display Driver : IT8951E Physical Button Multi-function button*1 , Reset Button*1 RTC BM8563 Antenna 2.4G 3D Antenna PINS G25, G32, G26, G33, G18, G19 Battery 1150mAh@3.7V Working Temp 0°C to 60°C Net Weight 86g Gross Weight 100g Product Dimension 118*66x*10mm Packaging Dimension 120*70x*14mm Casing Material Plastic ( PC ) LEARN AND DOCUMENTS DOCUMENTS Arduino IDE Arduino IDE This tutorial will show you how to program and control M5Paper devices through Arduino IDE ToDo List ToDo List This tutorial will show you how to program and control M5Paper devices through ToDo List M5Stack Christmas Flip-Pics M5Stack Christmas Flip-Pics Flip-Pics is a Simple Digital Picture Frame firmware for M5Paper. Display your best pictures with the vintage effect of an e-ink display! Drawing on Eink Drawing on Eink There are far too few projects with the m5paper, a device that I am loving to play with. That is why I am posting this first day project. Hello World on Paper with UIFlow Hello World on Paper with UIFlow The Simple Hello World starter program for the M5Stack Coreink and M5Paper devices, programmed in UIFLow. Control sit/stand Desk height with a Paper E-Ink Display Control sit/stand Desk height with a Paper E-Ink Display Control IKEA Bekant Desk sit/stand height with M5Stack M5Paper using two Relay units and a ToF (time-of-flight sensor VL53L0x) unit. Cibus Tabula, Alexa Voice Interface to E-Ink Cibus Tabula, Alexa Voice Interface to E-Ink A voice interface, Alexa skill, sent data to a Node-Red Rest API, it stores my food list in a MariaDB table. Show it in a ESP32 eink device.
