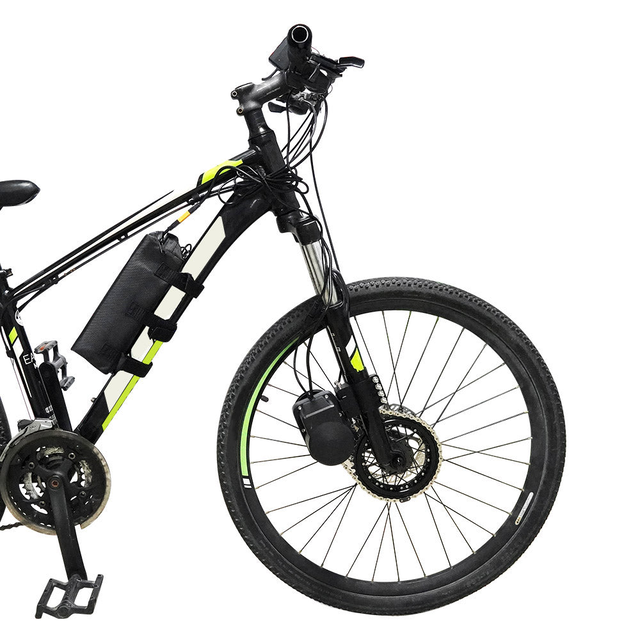

Flipsky Z9 Bicycle Speed Booster Kit for Increased Speed With 48V 5.2AH / 9AH Battery
FLIPSKYFLIPSKY
4.0

Flipsky Z9 Bicycle Speed Booster Kit for Increased Speed With 48V 5.2AH / 9AH Battery

USD 259.00

Description

Notes: Connect the charger to the battery before plugging into the power.  Avoid long-term unused and discharged. Store in dry, ventilated areas. Keep away from extreme temperatures or fire. Proper use and maintenance can lengthen the battery life span. Installation Condition The front wheel is spoke wheel. The front forks are paralleled on the left and right.  Wheel Size:14-28 Inches The motor chain has three types: 12/14/18-tooth, matching tires of different size. DO NOT use a large chain wheel with large-sized tire, or it cannot brake under high speed and cause injury. ·Note:1. Affirm the diameter of front fork is of 20mm - 40mm. Using 20mm - 30mm with small-sized fastener, 30mm - 40mm with large-sized fastener. 2. The product cannot be installed if the front fork is concave and makes the front fork and the spokes too close. The chain will rub against the front fork. 3. The product cannot be installed if the thickness of the front fork is inconsistent. Electric Bike Speed Booster Kit User Manual Electric Bike Speed Booster Kit User Manual2   Product Features Powerful Motor: This product equips chain-driven electric booster, featuring 450W brushless motor for efficiency improvement and quiet running which can convert your bicycle to electric bike and reach the maximum riding speed easily over 40%, applicable for regular bicycles and mountain bikes that are used on commuting and short journey. It transforms hill climbing be a breeze.  Durable & Convenient: The aluminum alloy frame enables it to be durable and stable. Also, thumb governor with 3 indicators is designed for displaying battery status to avoid stopping working caused by low battery suddenly.  Direction Adjustable: The flywheel clutch direction and the motor movement direction can be adjusted.  Easy to Be Assembled: This booster kit includes necessary components for installation, so it’s easy to assemble all the parts together for converting ordinary bicycles to electric bikes.  Support multiple installation methods, customers can connect the battery (48V with 15A discharge current) to work directly. Users can select battery capacities per different requirements  Battery Specifications: Compatible Power Supplies: Voltage: 48VDischarge Current: ≥15ACapacity: ≥5AH (adjust based on needs)Port: XT60 female connector

Get a discount on Flipsky Z9 Bicycle Speed Booster Kit for Increased Speed With 48V 5.2AH / 9AH Battery

You could save on FLIPSKY Flipsky Z9 Bicycle Speed Booster Kit for Increased Speed With 48V 5.2AH / 9AH Battery with a FLIPSKY promo code:

    FLIPSKY logo

    $10 off

    35 uses
    high

    worked about 2 months ago

    $10 Off Storewide (Minimum Order: $100) at FLIPSKY
View all FLIPSKY coupons and promo codes

More FLIPSKY Products

Flipsky 75100 Pro V2.0 With Aluminum PCB Based on VESC For Electric Skateboard / Scooter / Ebike Speed Controller

Flipsky 75100 Pro V2.0 With Aluminum PCB Based on VESC For Electric Skateboard / Scooter / Ebike Speed Controller

Spec: Firmware: 6.02 (firmware update supported) Size: L103mm*W58mm*H27.7mm Voltage:14-84V (4-20S) Current:100A Continuous BEC:5V@1.5A Support BLDC square wave mode control and FOC sine wave mode ERPM:150000 Control Interface Ports:USB,CAN,UART Supported Sensors:ABI，HALL，AS5047，AS5048A Input Set Support:PPM，ADC，NRF,UART Wire Size: 10AWG(75100 Pro) Programmable: Yes Regenerative Capacity: Yes Phase Filter: Yes Power Switch Button: Red integrates Bluetooth module function The maximum peak current is 150A the absolute maximum current is recommended to be set to 200A Wiring diagram:

USD 98.00

Flipsky 75100 V2.0 With Aluminum PCB With Power Key Switch Button Based on VESC For Electric Skateboard / Scooter / Ebike Speed Controller

Flipsky 75100 V2.0 With Aluminum PCB With Power Key Switch Button Based on VESC For Electric Skateboard / Scooter / Ebike Speed Controller

Specs: Size: 103X58X24mm Voltage:14-84V (4-20S) Continuous Current: 100A Peak Current: 250A Firmware: 5.02; firmware upgrade available (Phase filter needs to be turned off for firmware 5.03 or newer) BEC: 5V@1A Modes: DC，BLDC，FOC(sinusoidal) Control Interface Ports: USB,CAN,UART Supported Sensors: ABI，HALL，AS5047，AS5048A Input Set Support: PPM，ADC，NRF,UART Wire Size: 12AWG Programmable: Yes Regenerative Capacity: Yes Power Switch Button: Red Wiring diagram:

USD 88.00

Flipsky TFT Advanced display with GPS function IP65 waterproof for Ebike

Flipsky TFT Advanced display with GPS function IP65 waterproof for Ebike

Support Esc Types: FTESC: Flipsky Non VESC ESCs FSESC: ESCs based on VESC FOCBOX: FOCBOX Unity Product Structural dimensions: Specification: Dimension: L*W*H (mm) 124.4*68.1*18.5(mm) Display Size 3.2 “ Display Type TFT Display Color RGB Display Image Resolution 240*320 Voltage/Current 5V/500mA Working Temperature -20℃～+70℃ Storage Temperature -30℃～+70℃ IP Rate IP65 Weight 116g Communication Mode UART Product Wiring Diagram: Product Common basic operations: Gear switch: In the main interface, short press the plus key to switch gears; Parameter description: The gear switch function is only applicable to the PAS mode of the "FTESC" electronic adjustment type. PAS mode: 0 gear The speed is zero, and other different gears can control different speeds. The higher the gear, the faster the speed. Data display: In the main interface, short press the minus key to enter the All data interface; short press the minus key again to return to the main interface. Riding mode: In the main interface, double-click the minus key to enter the riding mode; double-click again to end the current riding record. Riding record: In the main interface, long press the plus key to enter the riding record interface; long press the plus key again to exit; If you want to clear the riding record, long press the minus key. Parameter setting: In the main interface, long press the minus key to enter the parameter setting interface; long press the minus key again to return to the main interface. EBike Cycling Computer TFT Screen User Manual（please Scan QR code）： https://cdn.shopify.com/s/files/1/0011/4039/1996/files/EBike_TFT_Color_Display_Manual_105f57a8-8e9b-40a7-bf66-5e4a4925e7ae.pdf?v=1731379183 Kindly Remind: Improper operation may cause useless or even damage. We Strongly recommend you reading this manual carefully before using this product and strictly follow the prescribed operating procedures. We are not responsible for any liability reason arising from the misuse of this product, including but not limited to liability for direct or indirect loss or damage, and we do not assume any liability for unauthorized modifications for the product. We reserve the right to change product design, appearance, performance and usage requirements without prior notice to the buyer

USD 45.00

Flipsky Sensored Outrunner Brushless DC Motor Battle hardened 63100 140KV 170KV 190KV 5500W

Flipsky Sensored Outrunner Brushless DC Motor Battle hardened 63100 140KV 170KV 190KV 5500W

Warm Tips: Support custom KV value, round shaft pulley will default come with 16T pulley/D shaft will come with 15T,please leave order notes if you have any requirements,thanks. Spec: Weight: 1.4KG Max Power: 5500W Motor KV: 190/170/140KV Max. current: 100A Battery type: 4-14S (4-12S is safe for 190KV) Recommend ESC: VESC6 Max Torque: 10Nm (in a very short time, no more than 30S) Diameter(mm): 63 Length(mm): 100 Total length (mm):130mm(including 8mm round shaft) / 125mm(including 10mm D shaft) Shaft(mm): 8mm/10mm Bullet connector: 4mm Hall sensor connector: 6-pin JST-PH High efficiency within 8000rpm, no more than 10000rpm  Detail:     10MM D Shaft Motor Drawings： 8MM Round Shaft Motor Drawings：     10MM Round Shaft Motor Drawings：   140KV Motor Curve Diagram link 170KV Motor Curve Diagram link 190KV Motor Curve Diagram link Reference video:

USD 143.00
