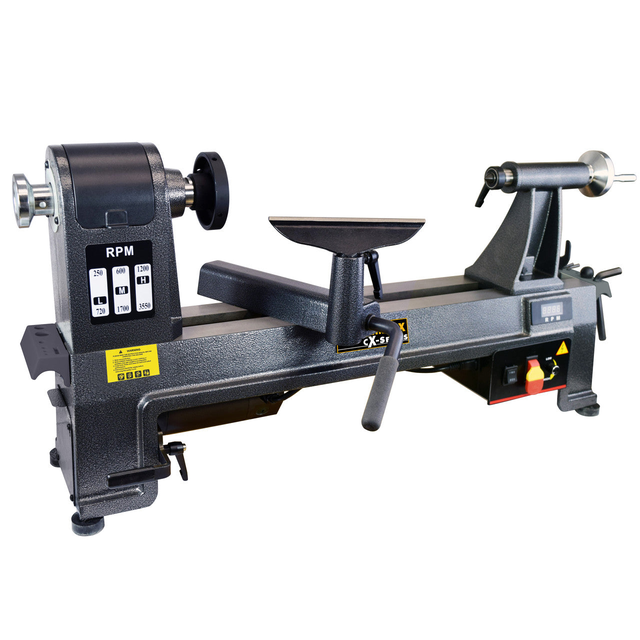

14" X 20" VARI SPEED WOOD LATHE

CAD 849.00

Description

The CX814 14" X 20" Heavy Duty Variable Speed Wood Lathe is a small but impressive and versatile wood lathe that is equipped with a powerful 1HP Universal motor. With speed ranges from 250 up to 3550 RPM this lathe is sure to be suitable for almost any turning project with ability to dial in the exact speed required for any application. With the optional CX814EXT Lathe extension available separately you won't have to worry about outgrowing this lathe as it can grow along with your interests in wood turning. All this is finished off with an ultra durable hammer tone finish that will help your machine look new and stand the test of time. FEATURES:Powerful 1HP Variable speed motor 250 RPM to 3550 RPMUltra Durable Hammer tone finishPrecision ground bed14" Swing over bedSPECIFICATIONS:Horsepower: 1HPVoltage: 120VAmps: 6AType: Universal Brush-TypeMotor Power: Variable frequency motorTransfer Belt: Drive BeltSwing Over Bed: 14"Swing Over Tool Rest Base: 10"Distance Between Centers: 20"Max. Distance Tool Rest to Spindle Center: 5"No of Spindle Speeds: VariableSpindle Speed Range: 250-720 RPM, 600-1700 RPM, and 1200-3550Spindle Taper: MT2Spindle Thread Size: 1" x 8TPISpindle Bore: 5/8 inchType of Included Spindle: Center SpurIndexed Spindle Increments: 15 deg.No of Indexes: 24Tool Rest Width: 8"Tool Rest Post Diameter: 1"Tool Rest Post Length: 3-1/2"Tool Rest Base Height: 2"Tailstock Taper: MT2Type of Included Tailstock Center: LiveTailstock quill travel: 3.543" (90mm)Bed Width: 5-1/8"Faceplate Size: 4"Net Weight: 50KGWidth (side-to-side) x Depth (front-to-back) x Height: 41-1/2"X22"X19"Gross Weight: 52.5KGLength x Width x Height: 38.2"x20.0"x11.8" (970*530*300mm)Warranty: 3 YearsIncludes:Knock out barFaceplateLive CentreSpurTool Rests
